Microservices Messaging Pattern in Java: Enabling Asynchronous Communication Between Services

About 3 min

Also known as

Asynchronous Messaging
Event-Driven Communication
Message-Oriented Middleware (MOM)

Intent of Microservices Messaging Design Pattern

The Microservices Messaging pattern enables asynchronous communication between microservices through message passing, allowing for better decoupling, scalability, and fault tolerance. Services communicate by exchanging messages over messaging channels managed by a message broker.

Detailed Explanation of Microservices Messaging Pattern with Real-World Examples

Real-world example

Imagine an e-commerce platform where a customer places an order. The Order Service publishes an "Order Created" message to a message broker. Multiple services listen to this message: the Inventory Service updates stock levels, the Payment Service processes payment, and the Notification Service sends confirmation emails. Each service operates independently, processing messages at its own pace without blocking others. If the Payment Service is temporarily down, the message broker holds the message until it recovers, ensuring no data is lost.

In plain words

The Microservices Messaging pattern allows services to communicate asynchronously through a message broker, enabling them to work independently without waiting for each other.

Wikipedia says

Message-oriented middleware is software or hardware infrastructure supporting sending and receiving messages between distributed systems. MOM allows application modules to be distributed over heterogeneous platforms and reduces the complexity of developing applications that span multiple operating systems and network protocols.

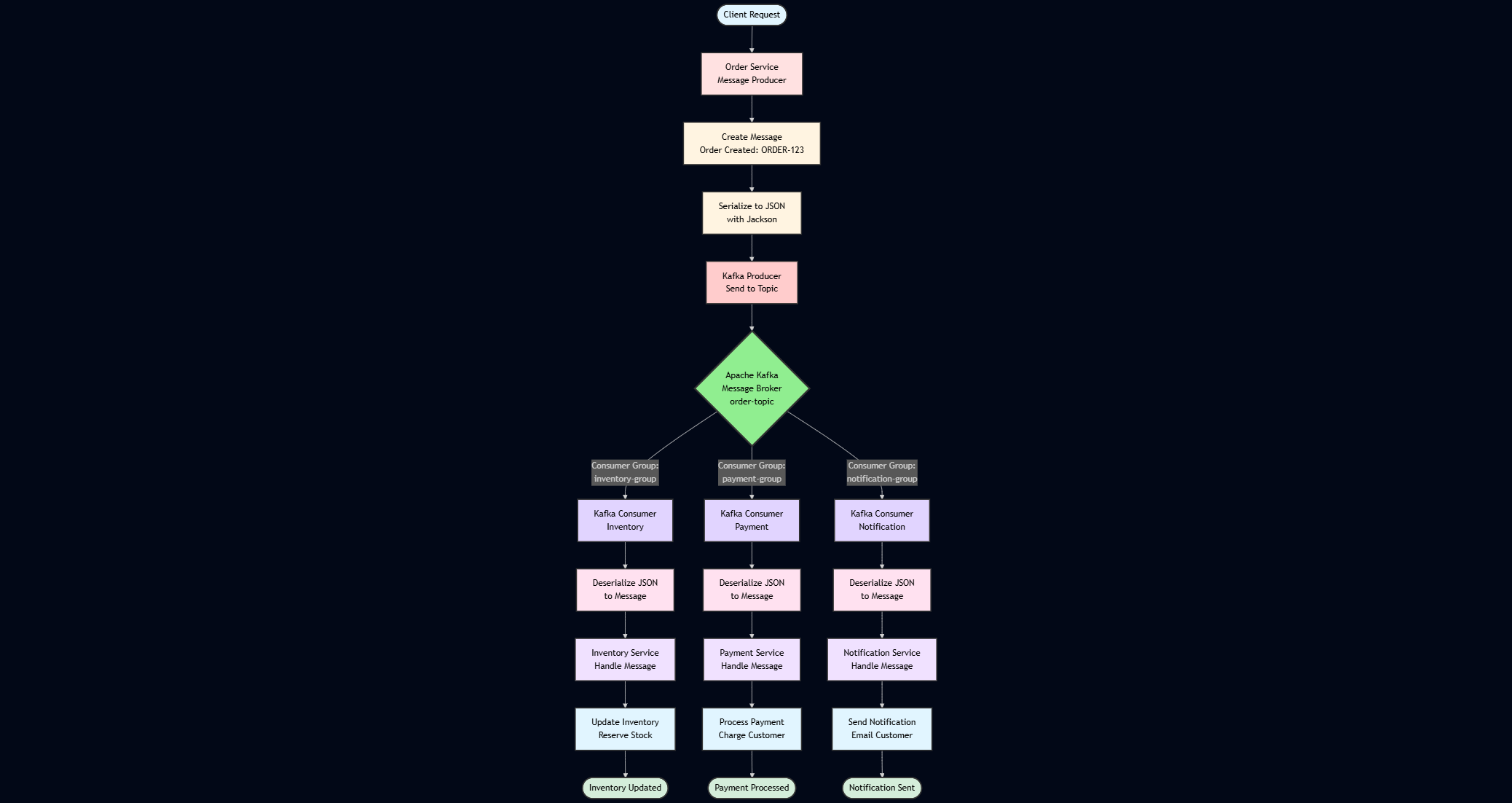

Flowchart

Microservices Messaging flowchart

Programmatic Example of Microservices Messaging Pattern in Java

The Microservices Messaging pattern demonstrates how services communicate through a message broker without direct coupling. In this example, we show an order processing system where services exchange messages asynchronously.

The Message class represents the data exchanged between services.

public class Message {
  private final String id;
  private final String content;
  private final LocalDateTime timestamp;

  public Message(String content) {
    this.id = UUID.randomUUID().toString();
    this.content = content;
    this.timestamp = LocalDateTime.now();
  }

  // Getters
}

The MessageBroker acts as the intermediary that routes messages between producers and consumers.

public class MessageBroker {
  private final Map subscribers = new ConcurrentHashMap<>();

  public void subscribe(String topic, Consumer handler) {
    subscribers.computeIfAbsent(topic, k -> new ArrayList<>()).add(handler);
  }

  public void publish(String topic, Message message) {
    List<Consumer> handlers = subscribers.get(topic);
    if (handlers != null) {
      handlers.forEach(handler -> handler.accept(message));
    }
  }
}

The OrderService is a message producer that publishes order messages.

public class OrderService {
  private static final Logger LOGGER = LoggerFactory.getLogger(OrderService.class);
  private final MessageBroker broker;

  public OrderService(MessageBroker broker) {
    this.broker = broker;
  }

  public void createOrder(String orderId) {
    Message message = new Message("Order Created: " + orderId);
    broker.publish("order-topic", message);
    LOGGER.info("Published order message: {}", orderId);
  }
}

The InventoryService is a message consumer that processes inventory updates.

public class InventoryService {
  private static final Logger LOGGER = LoggerFactory.getLogger(InventoryService.class);

  public void handleMessage(Message message) {
    LOGGER.info("Inventory Service received: {}", message.getContent());
    LOGGER.info("Updating inventory...");
  }
}

The PaymentService handles payment processing messages.

public class PaymentService {
  private static final Logger LOGGER = LoggerFactory.getLogger(PaymentService.class);

  public void handleMessage(Message message) {
    LOGGER.info("Payment Service received: {}", message.getContent());
    LOGGER.info("Processing payment...");
  }
}

The main application demonstrates the messaging pattern in action.

public class App {
  private static final Logger LOGGER = LoggerFactory.getLogger(App.class);

  public static void main(String[] args) throws InterruptedException {
    final MessageBroker broker = new MessageBroker();

    final InventoryService inventoryService = new InventoryService();
    final PaymentService paymentService = new PaymentService();

    broker.subscribe("order-topic", inventoryService::handleMessage);
    broker.subscribe("order-topic", paymentService::handleMessage);

    final OrderService orderService = new OrderService(broker);

    orderService.createOrder("ORDER-123");

    Thread.sleep(1000);
  }
}

Console output:

Published order message: ORDER-123
Inventory Service received: Order Created: ORDER-123
Updating inventory...
Payment Service received: Order Created: ORDER-123
Processing payment...

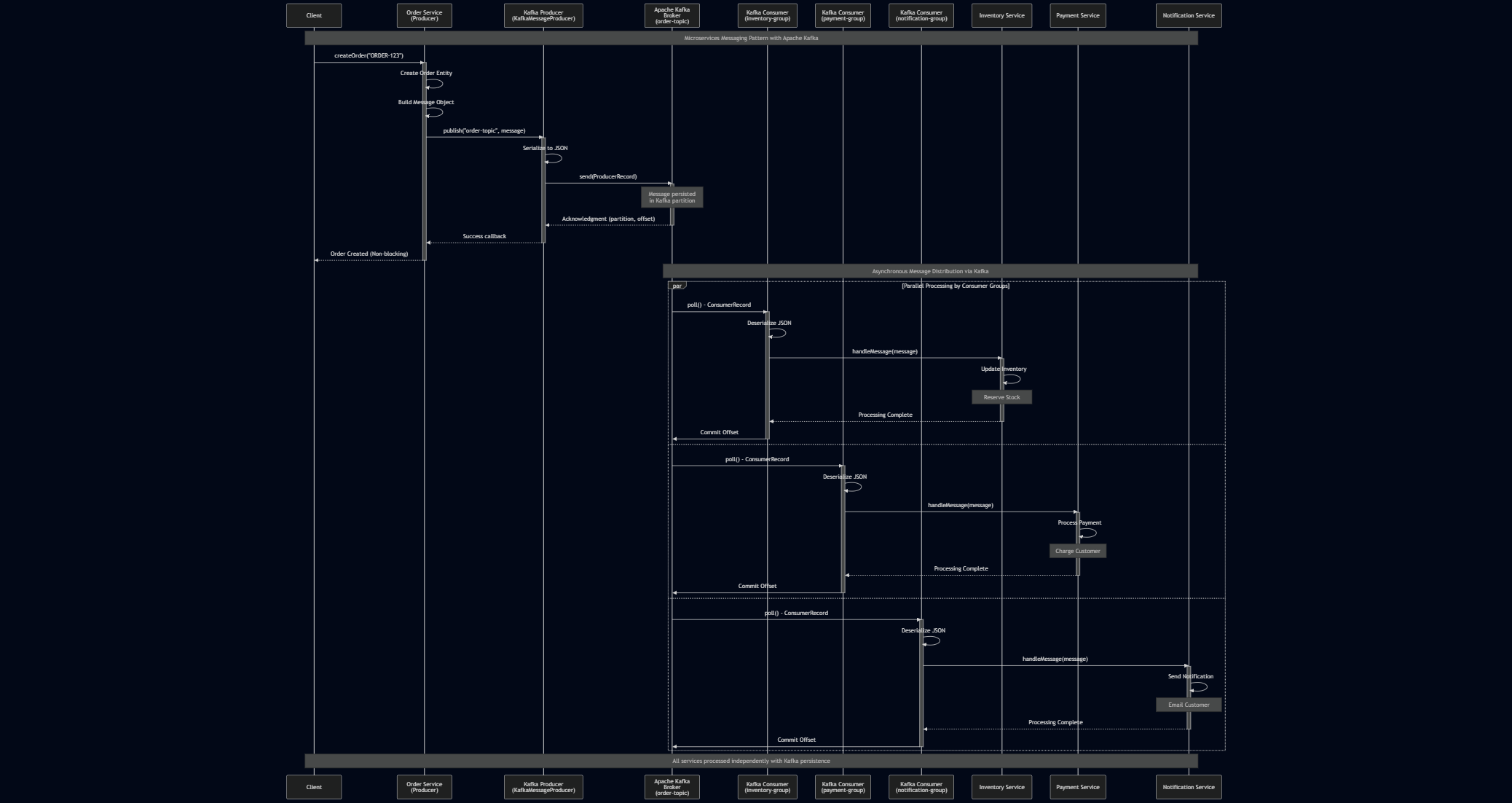

Sequence Diagram

Microservices Messaging sequence_diagram

How to Run the Application

Option 1: Automated Script (Recommended)

Run the helper script from the module directory, which automatically starts Kafka via Docker Compose (if Docker is installed and Kafka is not already running) and launches the application:

Windows (PowerShell):

powershell -ExecutionPolicy Bypass -File .\run-app.ps1

Linux / macOS:
```
./run-app.sh
```

Option 2: Docker Compose

Start the Kafka container manually via Docker Compose and run the application:

# Start Kafka container on port 9092
docker compose up -d

# Run the application
../mvnw compile exec:java -Dexec.mainClass="com.iluwatar.messaging.App"

# Stop Kafka container when finished
docker compose down

When to Use the Microservices Messaging Pattern in Java

When services need to communicate without blocking each other.
In systems requiring loose coupling between components.
For event-driven architectures where multiple services react to events.
When you need to handle traffic spikes by buffering messages.
In distributed systems where services may be temporarily unavailable.

Real-World Applications of Microservices Messaging Pattern in Java

Java applications using Apache Kafka, RabbitMQ, or ActiveMQ for service communication.
E-commerce platforms for order processing and inventory management.
Financial services for transaction processing and notifications.
IoT systems for sensor data processing and event handling.

Benefits and Trade-offs of Microservices Messaging Pattern

Services are loosely coupled and can be developed and deployed independently.
Message buffering improves system resilience when services are temporarily unavailable.
Supports multiple communication patterns like publish/subscribe and request/reply.
Enhances scalability by allowing parallel message processing.
Natural support for event-driven architectures.

Trade-offs:

Introduces additional complexity with the message broker infrastructure.
Requires high availability setup for the message broker.
Eventual consistency instead of immediate consistency.
Debugging asynchronous flows is more complex than synchronous calls.
Need to handle message duplication and ensure idempotent consumers.

Saga Pattern: Uses messaging to coordinate distributed transactions.
CQRS Pattern: Often uses messaging to separate read and write operations.
Event Sourcing: Stores state changes as messages.
API Gateway: Complements messaging for synchronous requests.
